Stackers



Introducing the Stacker Range

Astec Bulk Handling Solution's stackers are some of the most cost efficient and effective ways of stockpiling materials on the market.


Key Features

  • Reduce / eliminate segregation, degradation, contamination and compaction
  • Fully automated operation for reduced labour
  • Easily utilised into fixed and mobile crushing and screening operations
  • Radial telescopic stackers offer 30% more volume on same footprint compared to fixed length stackers
  • Radial telescopic stackers are proven to be the best method of stockpiling in the industry for maintaining material quality

Description

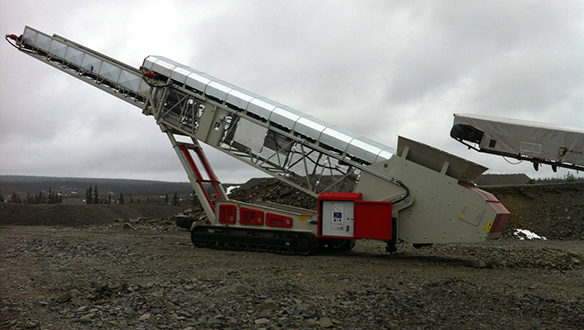

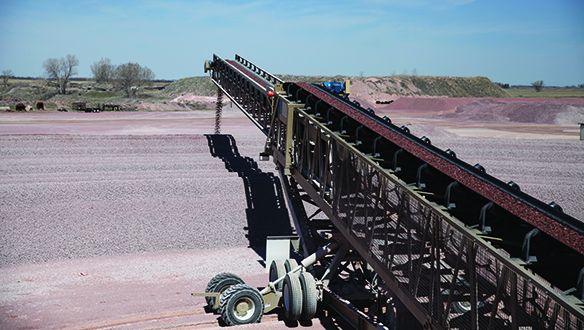

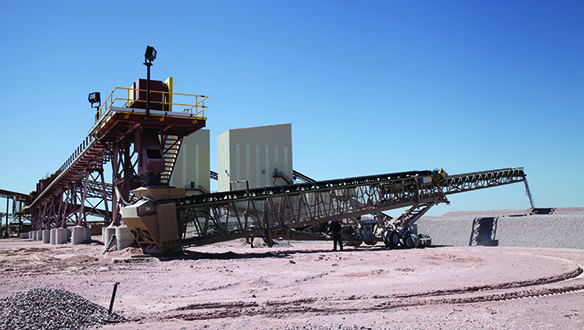

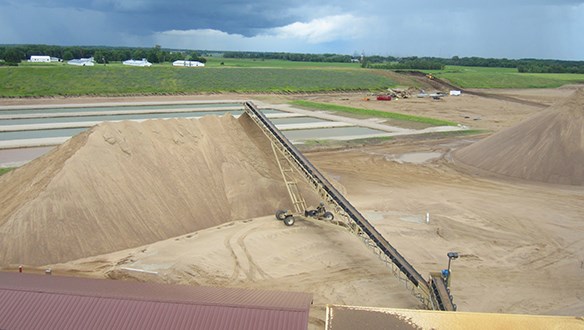

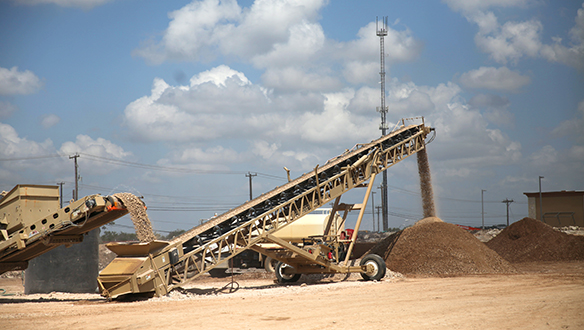

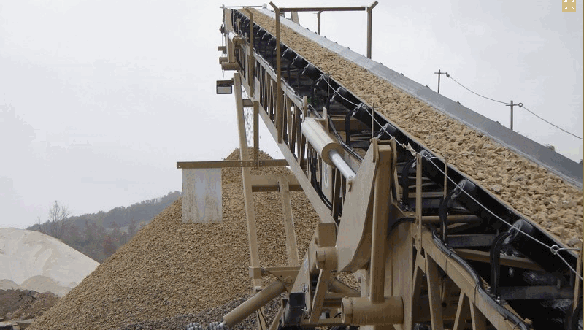

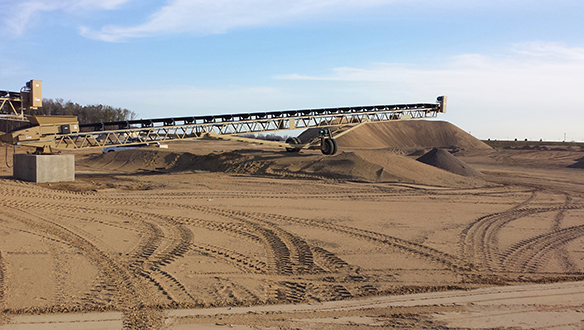

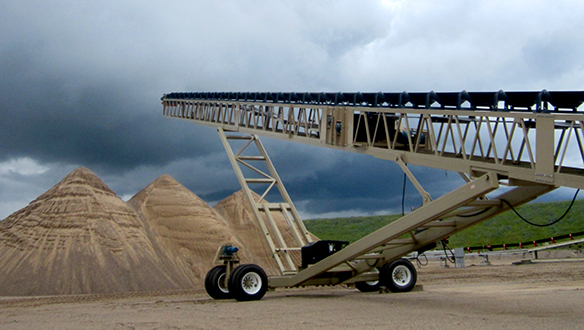

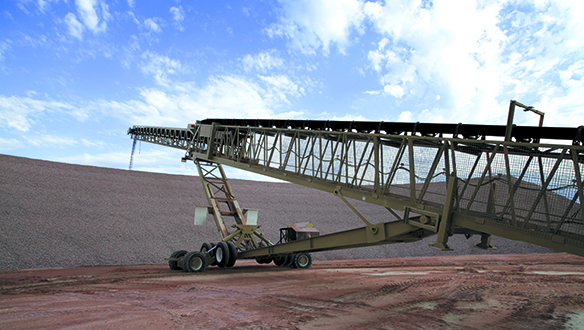

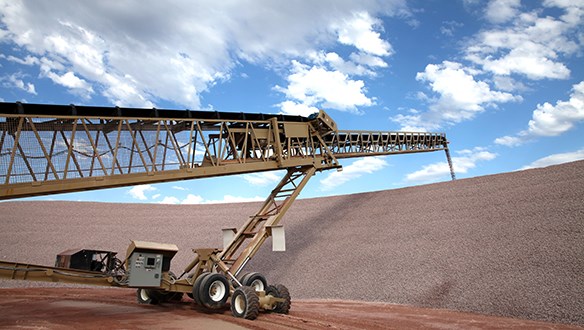

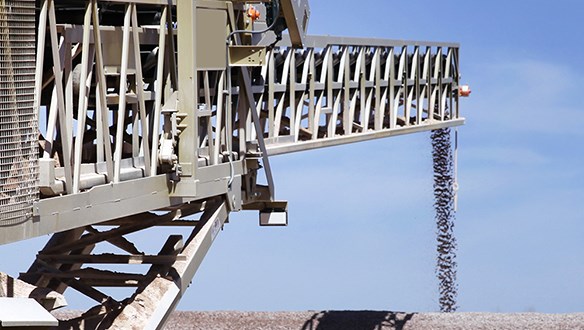

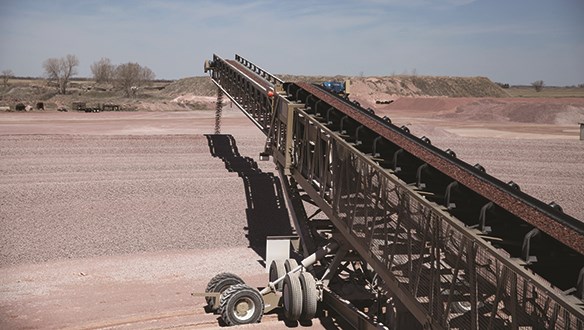

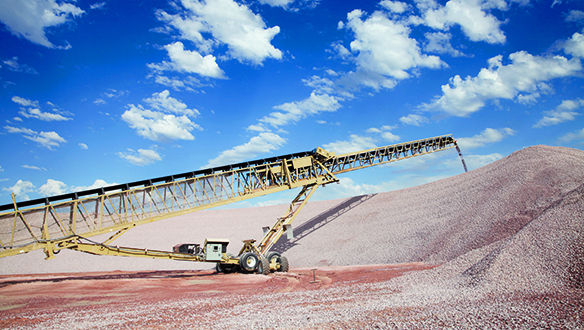

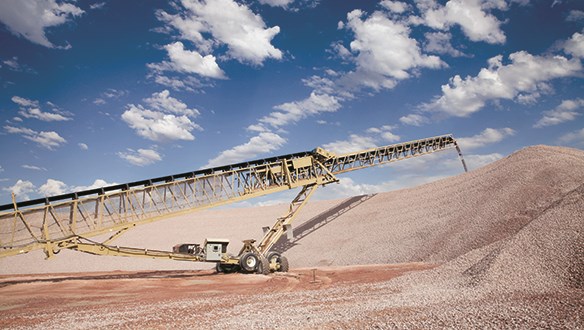

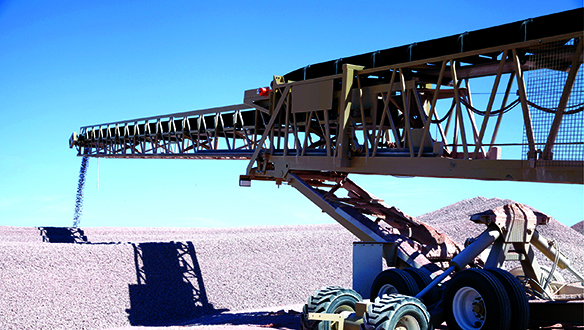

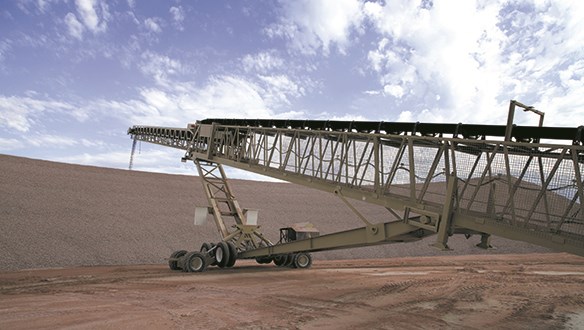

The radial telescopic stacker is one of the most cost efficient and effective way of stockpiling material on the market. The reduction of segregation, degradation, contamination and compaction when stockpiling ensures ‘in specification’ material for any application. The radial telescopic stackers cater for a complete range of applications and industries. They offer 30% more stockpile capacity on the same footprint when stockpiling in a trapezoidal shape compared using standard stackers. ABHS also offer a wide range of fixed length stackers, both tracked and wheeled.

OPTIONS

  • Fully automatic PLC stockpiling program

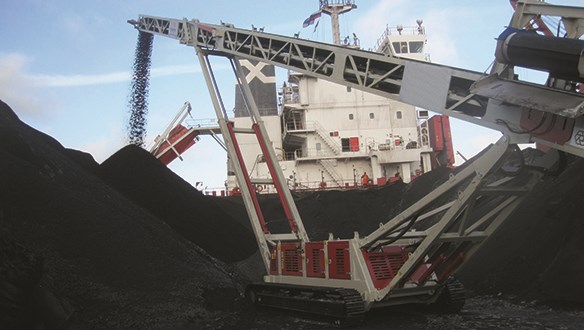

  • Tracked / wheeled options for unrivalled mobility on site
  • On-board diesel electric generator for fully independent operation
  • Stockpiling material from 0 – 400mm (0 – 15 inch)
  • Radio remote control options available
  • Galvanised / canvas dust covers
  • Dust extraction units mounted at transfer points
  • Telescopic discharge chutes - Free-fall, cascade & rotational trimmer chutes available
  • Rubber ‘sock’ chutes
  • Spray bars for dust suppression
  • Sealing of all transfer points including side plates and under-trays
  • 250 micron paint finish available

Features & Benefits

  • Proven best method of stockpiling in the industry for maintaining material quality.
  • Up to 30% more capacity on same foot print compared to conventional stackers.
  • Greatly reduces segregation, degradation, compaction and contamination when stockpiling.
  • Provides a higher quality product at a lower stockpiling cost per tonne
  • Eliminates need for wheel loaders to build stockpiles – reduced labour and maintenance costs.
  • Loading rates up to 3,000TPH.
  • Fully extended lengths up to 58 metres (190ft)
  • Eliminate double handling of material

OPTIONS

  • Fully automatic PLC stockpiling program
  • Tracked / wheeled options for unrivalled mobility on site
  • On-board diesel electric generator for fully independent operation
  • Stockpiling material from 0 – 400mm (0 – 15 inch)
  • Radio remote control options available
  • Galvanised / canvas dust covers
  • Dust extraction units mounted at transfer points
  • Telescopic discharge chutes - Free-fall, cascade & rotational trimmer chutes available
  • Rubber ‘sock’ chutes
  • Spray bars for dust suppression
  • Sealing of all transfer points including side plates and under-trays
  • 250 micron paint finish available

Applications

  • Stockpiling from fixed conveyor systems automatically to eliminate labour and production costs.
  • Stockpiling in Heap Leaching applications to allow the chemicals to percolate easily through the material.
  • Stockpiling into bays / silo’s for storing range of materials
  • High stockpile capacities in limited space
  • Stockpile capacities up to 200,000 tonne
  • Stockyard Management systems – Flexible and mobile equipment ideal for operation in stockyard as unit can be used as stacker, link and shiploading conveyor.

OPTIONS

  • Fully automatic PLC stockpiling program
  • Tracked / wheeled options for unrivalled mobility on site
  • On-board diesel electric generator for fully independent operation
  • Stockpiling material from 0 – 400mm (0 – 15 inch)
  • Radio remote control options available
  • Galvanised / canvas dust covers
  • Dust extraction units mounted at transfer points
  • Telescopic discharge chutes - Free-fall, cascade & rotational trimmer chutes available
  • Rubber ‘sock’ chutes
  • Spray bars for dust suppression
  • Sealing of all transfer points including side plates and under-trays
  • 250 micron paint finish available
